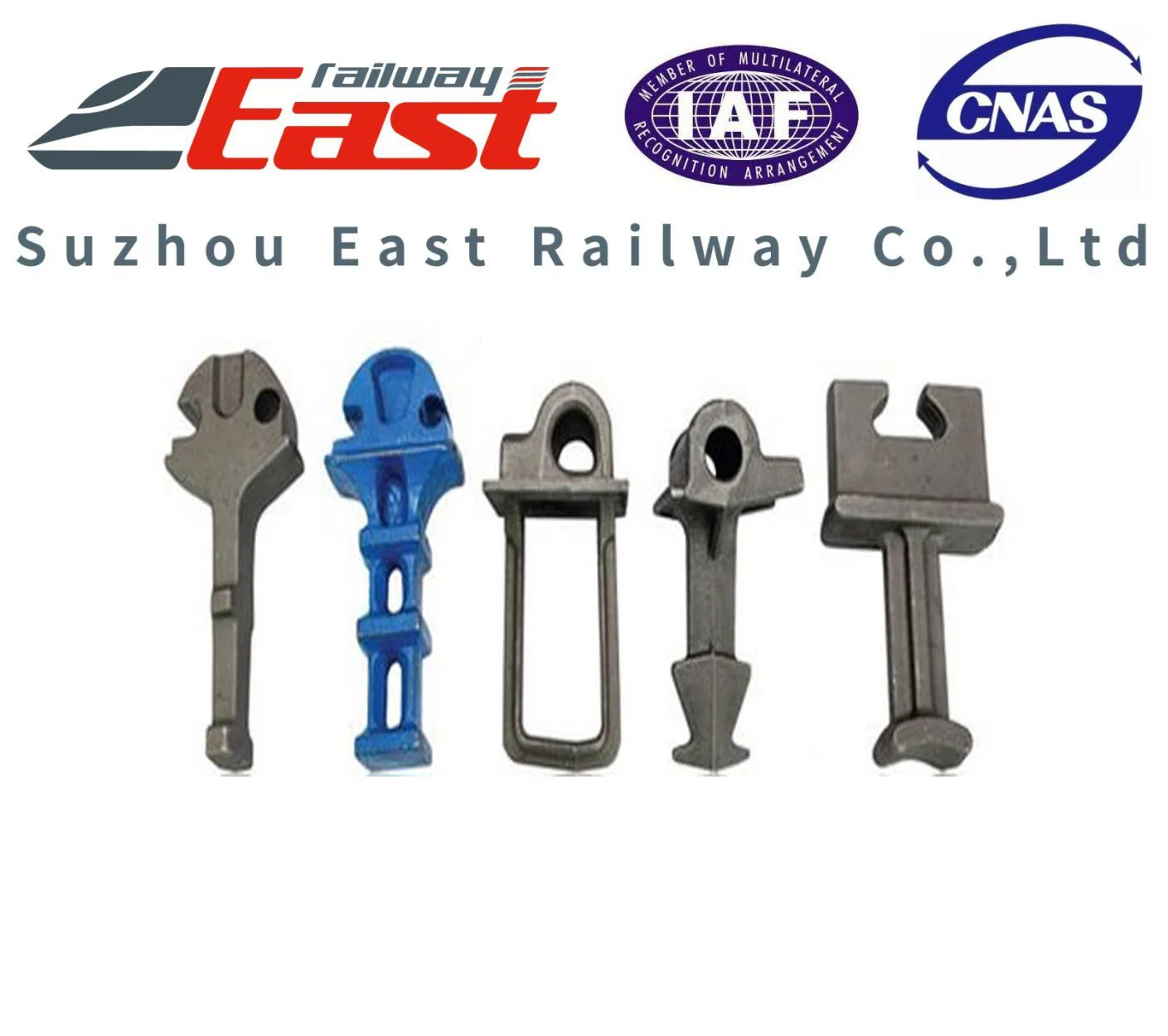

Rail Shoulder, Casting Shoulder and Weld-on Shoulder

A rail shoulder is a pre-inserted item in the concrete sleepers, no matter for single stem type or twin stem type, used to fix the elastic rail clips, mainly e-clips, within the fastening system.

We are capable of producing two types of rail shoulders for rail clips: cast in shoulder and weld-on shoulder.

Casting Rail Shoulders

Cast in Shoulder is made by casting from iron, and such shoulder is used by being pre-embedded in the concrete sleepers and works with the elastic clip to fasten the rail.

For materials, cast in shoulder includes 3 types: M.C.I. shoulder by malleable iron and S.G.C.I. shoulder by malleable iron and S.G.C.I. shoulder by spheroid graphite iron. Other materials available: QT600-3, QT700-2, ZG25, ZG35, ZG45 and so on.

Standard: GB/T 1348-1988, NF EN 1563(1997), ISO1038, DIN 1693, JIS G5502 (2001), KS D 4302, GOST 7293(1985) or BS EN 1563(1997).

Weld-on Shoulder

Weld-on shoulder is made by hot forging, and such shoulder is used for places where standard sleepers are unable to be easily used so the shoulders need to be welded on the flat steel base plates. In this way, it can fabricates the rail retaining units on both the steel ties and base plates, according to AREMA standard always.

Weld-on shoulders can be applied for Pandrol style clips with a range of 30lbs to 113lbs.

Special Rail Shoulder

Such kind of shoulder can be produced by hot forging as well, to be used together with rail clip bolts and special rail clips to fasten the rail, with material of low or mid carbon steels.

Freight wagons need to replace a large number of spare parts during long-term operation. As a specialist railway supplier, we can supply most of the spare parts needed for a freight wagon.

The wheel set is a key component of the Railway Bogie. It is also the most common and important spare part in the railway industry. One-wheel set contains two wheels, one axle, and two bearings. Depending on different application methods, other special parts including gears, brake discs, axle boxes etc. are included.

They could be used on wagons, locomotives, passenger cars and more. The wheel has a cast wheel or a forged wheel; the axle and bearings can be chosen according to customer requirements. Vehicle and bogie performance parameters will define what wheel set configuration is required.

Relative Standards

1. TB/T 1718 Technical requirement of railway vehicle's wheelset installation
2. UIC 813 Technical specification for the supply of wheelsets for tractive and trailing stock-Tolerances and assembly
3. BS 5892-6 Railway rolling stock materials - Specification for wheelsets for traction and trailing stock
4. EN 13260 Railway applications. Wheelsets and bogies. Wheelsets. Product requirements
5. JIS E4504 Wheelsets for railway rolling stock - Quality requirements

• Established in 2019, the company was created to both supply and design components, complete passenger carriages, freight wagons and spare parts for the ever growing world railway market.
• Our technical engineers, sales personnel and management team have combined years of extensive experience in the Railway Industry with projects based all over the world.
• Our goal is to meet all of the Customers' requirements, bringing them the best products, Project management, Maintenance, System Design and Integration at the best price possible.
• We offer a large inventory of products from the best Manufacturers in China and other world leaders in railway product manufacture.
• Global shipping and project requirements with time-sensitive deliveries and savings is our main aim.
