Basic Specifications
Type
PVD Vacuum Coating Machine
Control Mode
10.4 Inch PLC Touch Screen
Technology
Ion Plating Machine
Stainless Steel PVD Plating System

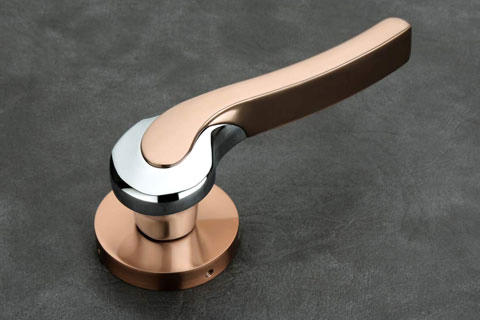

The machine can get all kinds of color on stainless steel products. We provide machine diameters from 800mm to 3200mm and heights from 800mm to 7200mm. It is suitable for coating small parts, stainless steel sheets, pipes, counters, connections, and furniture. The ion plating layer provides a real metal texture, significantly different from chemical coatings.
Available PVD Coating Colors:
Imitation Gold (TiN, ZrN)
Rose Gold (TiCN, TiAlN)
Silver White (CrN, CrSiN)
Grey Series (Ti, S.S)
Coffee Color (ZrC)
Blue Series (TiO, CrO)
Black Series (TiC, DLC)

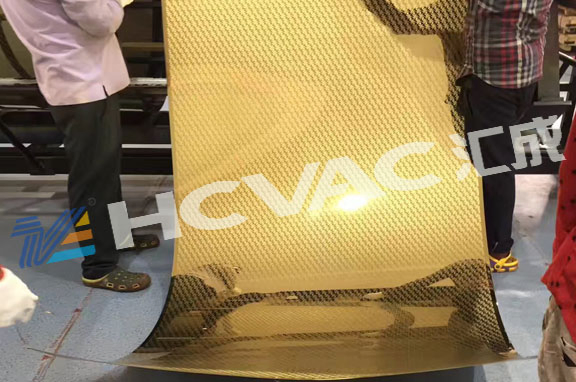

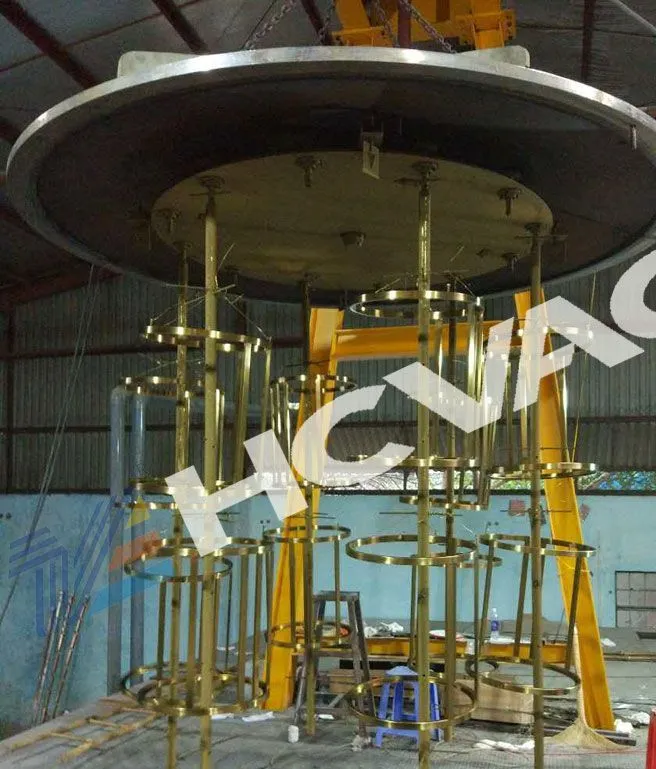

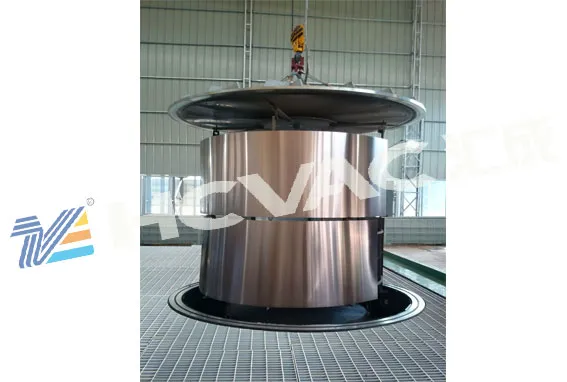

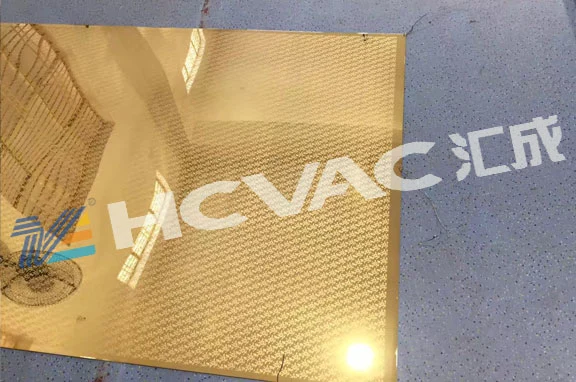

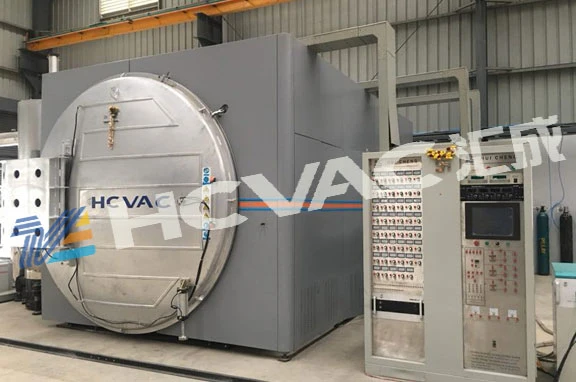

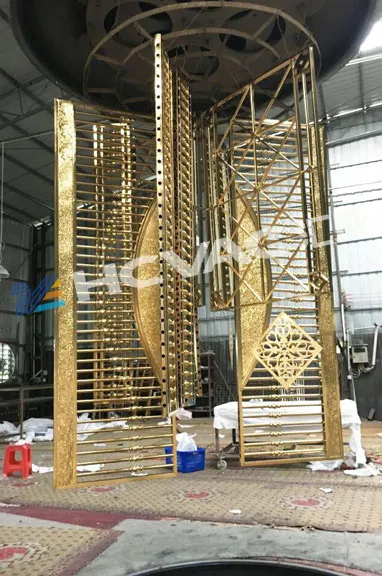

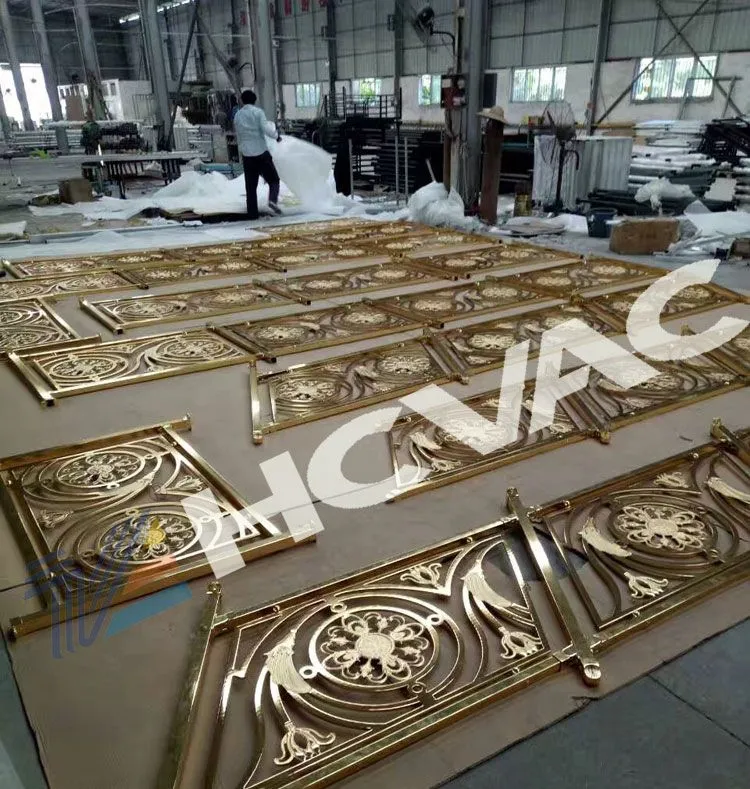

Product & Machine Gallery
Technical Specifications
| Model |
HCCA-1818 |
HCCA-2236 |
HCCA-2270 |
| Dimension |
D1800*H1800mm |
D2200*H3600mm |
D2200*L7000mm |
| Coating Mode |
Arc targets + Sputtering |
Arc targets |
Arc targets |
| Power Source |
Electric-arc power, Filament power, Pulsed bias power supply |
| Vacuum System |
Diffusion pump + Roots pump + Mechanical pump (5.0*10⁻⁴Pa) |
| Temperature |
Normal to 350°C PID control, Radiation heating |
| Control Mode |
Manual/Automatic/PC/PLC + HMI |

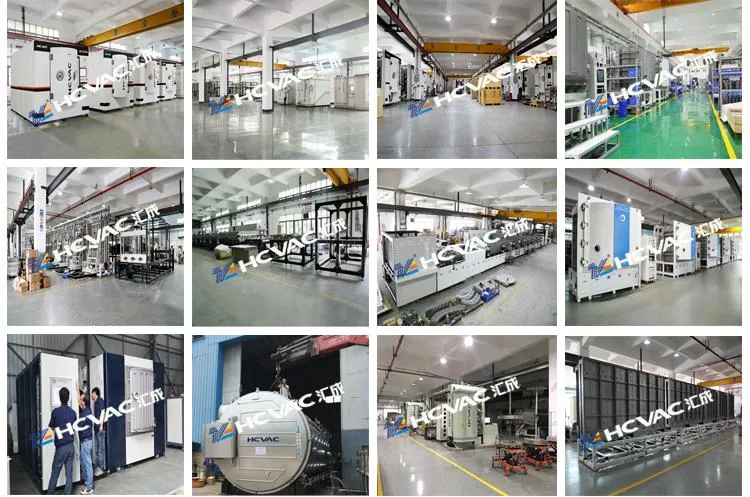

Facility & Delivery Exhibition
Why Choose Our PVD System?
- High production capability with low energy consumption
- Quick cycle times and ease of loading/unloading
- Steel process chambers built for a 25-year minimum guaranteed working life
- Eco-friendly technology with no hazardous chemical waste
- Touch screen + PLC control for full automatic or manual operation
- Complete global network for engineering and after-sales service
Frequently Asked Questions
What types of products can be coated with this system?

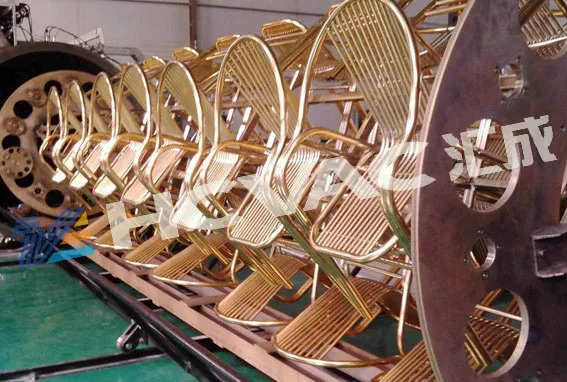

It is ideal for stainless steel sheets, pipes, furniture (chairs, tables), hotel accessories, and small hardware parts.
What is the maximum size of the workpiece the machine can handle?
We offer various models; the horizontal systems can accommodate tubes up to 6 meters long, and vertical chambers can load sheets up to 1500mm x 4000mm or larger.
Is the PVD coating process environmentally friendly?
Yes, PVD (Physical Vapor Deposition) is a clean, eco-friendly dry coating technique that does not produce the toxic waste associated with traditional chemical plating.
How many colors can the machine produce?
The system can achieve a wide range of decorative coatings including gold, rose gold, silver, black, coffee, rainbow, purple, and blue.
How difficult is it to operate the PVD coating machine?
The machine features a user-friendly 10.4-inch PLC touch screen. It supports full automatic operation, making it reliable and easy for a single operator to manage.
Can the technical specifications be customized?
Yes, we can design the dimensions and configurations of the equipment according to specific technical requirements and production needs.
