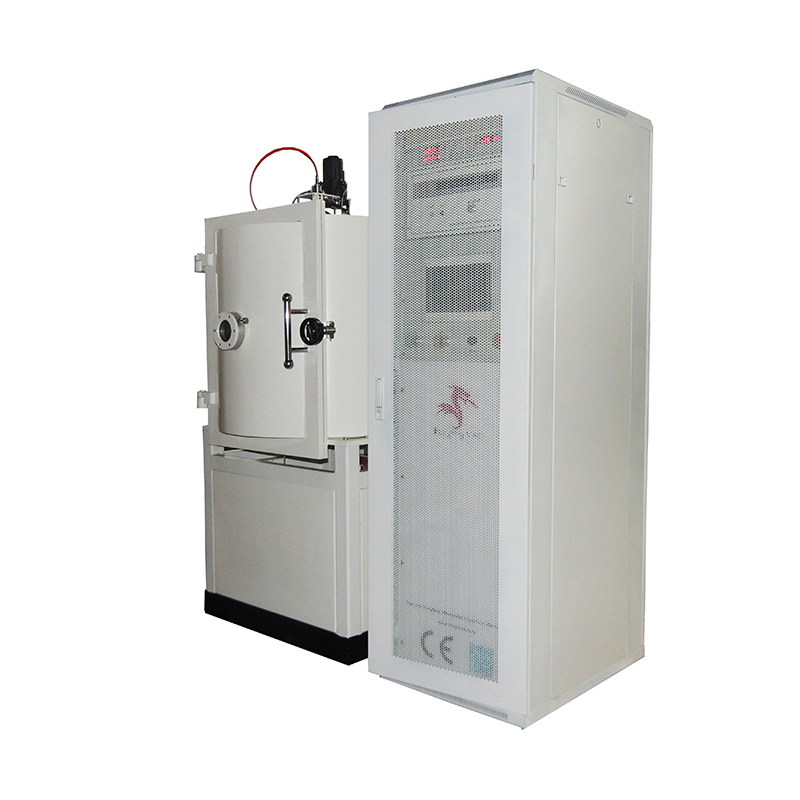

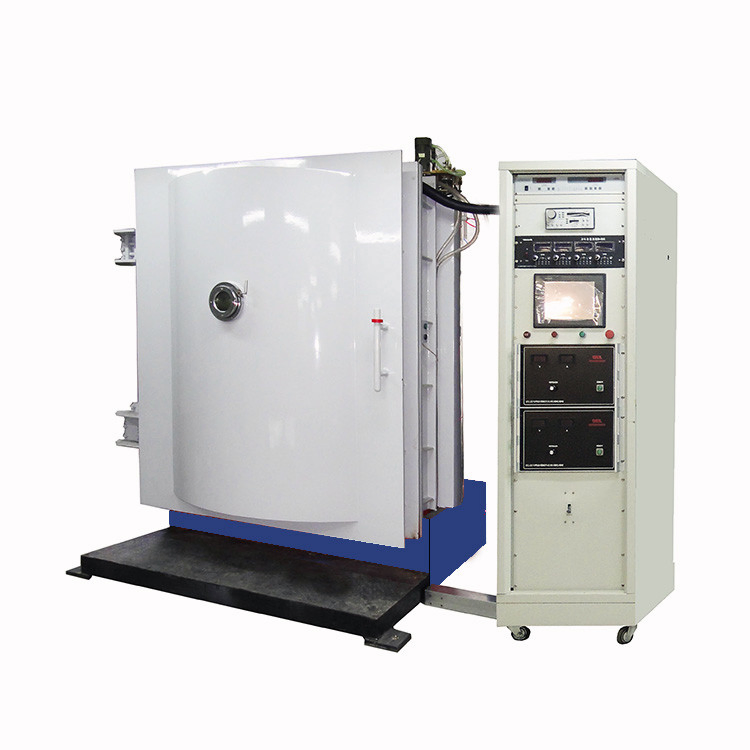

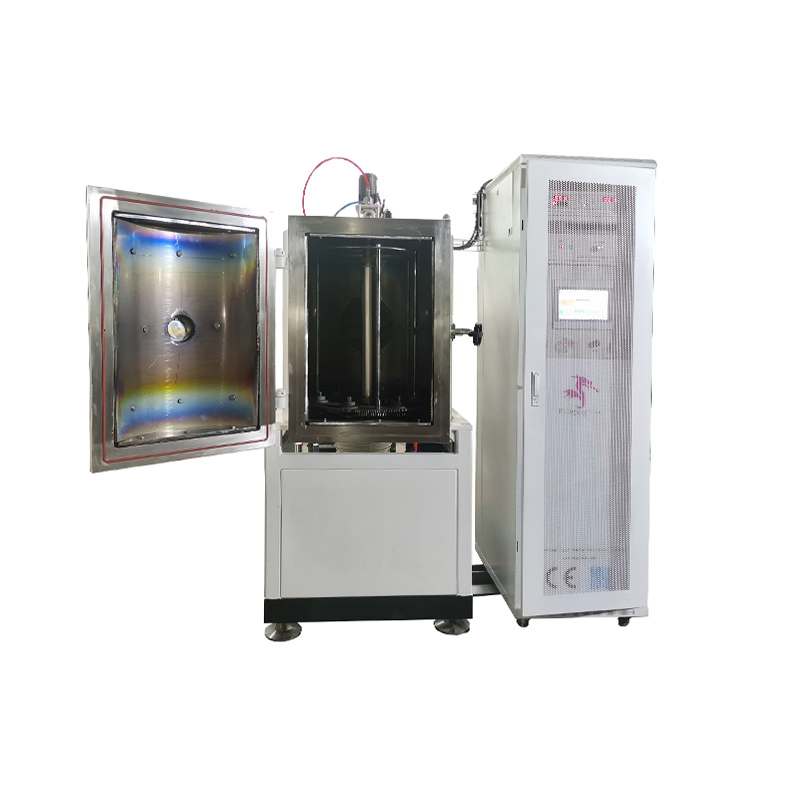

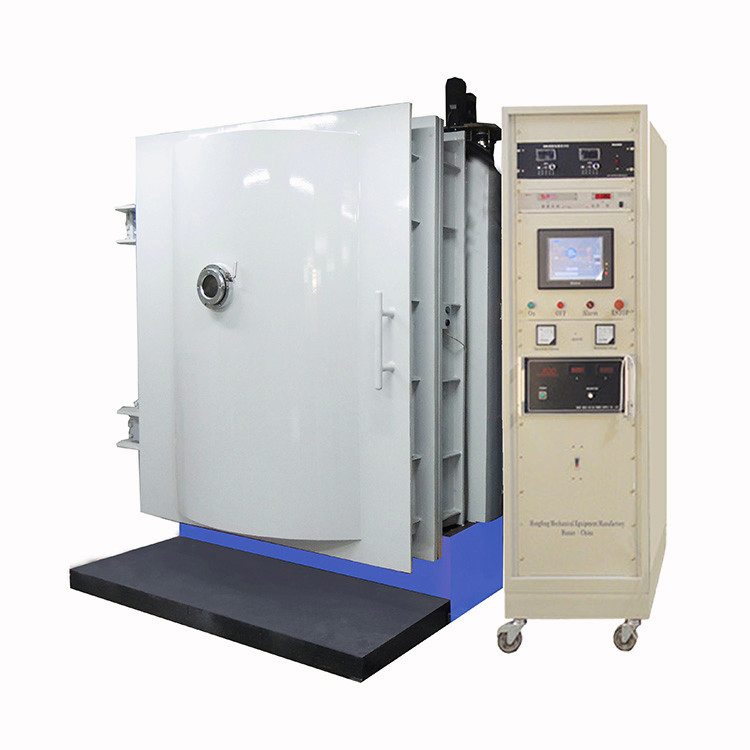

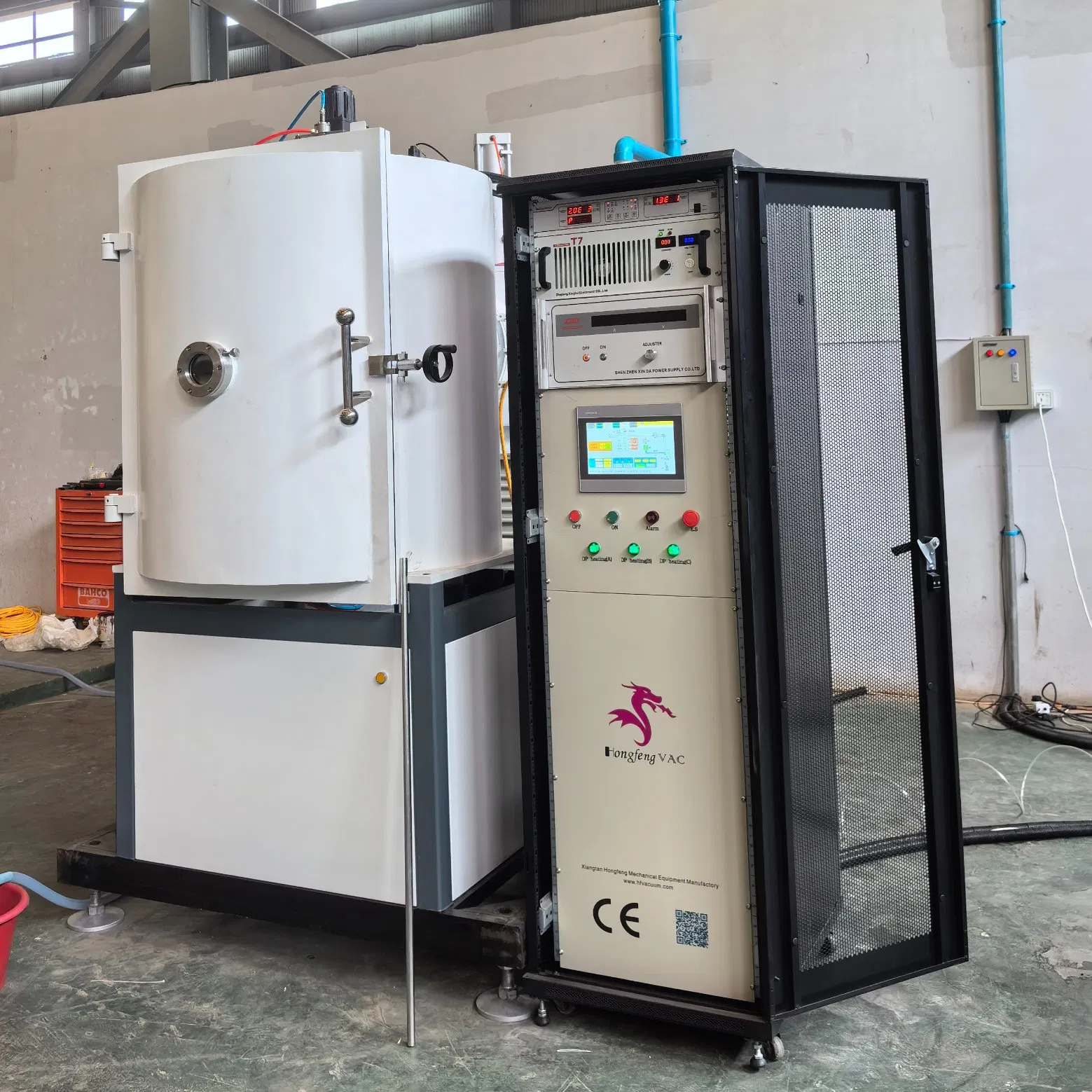

Vacuum Plating Silver Thin Film Deposition Magnetron Sputtering System
The equipment features a reasonable structure, providing uniform coating with high quality. It offers excellent pumping speed, a short cycle time, high efficiency, and stable performance with low energy consumption. It is widely applied in automotive parts, audio equipment, small appliances, computers, watches, toys, cell phones, reflective cups, and cosmetics industries.

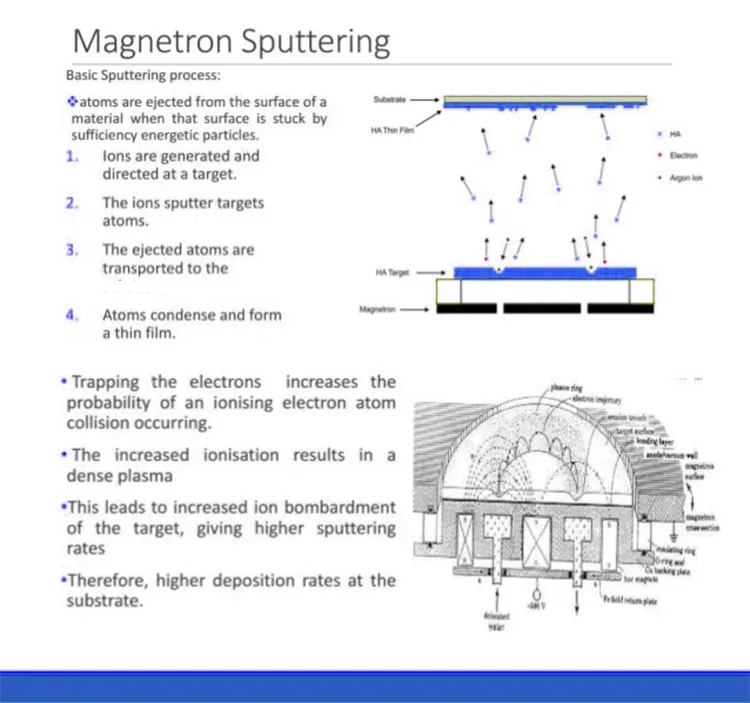

DC magnetron sputtering coating machines are typically utilized for direct sputtering coating on various substrates such as plastics, glass, metal, and ceramics. Magnetic fields define the behavior and properties of ion-charged particles used for sputtering, enhancing productivity and reproducibility.
| Model Number | SP-1000 | SP-1200 | SP-1400 | SP-1800 |
|---|---|---|---|---|
| Chamber Dimension (D*H) | 1000*1100 | 1200*1400 | 1400*1600 | 1800*2000 |
| Material | Carbon steel, SUS304 or SUS316L | |||
| Sputtering Cathodes | ≥1 sets, DC sputtering system (Cylindrical or Rectangle) | |||

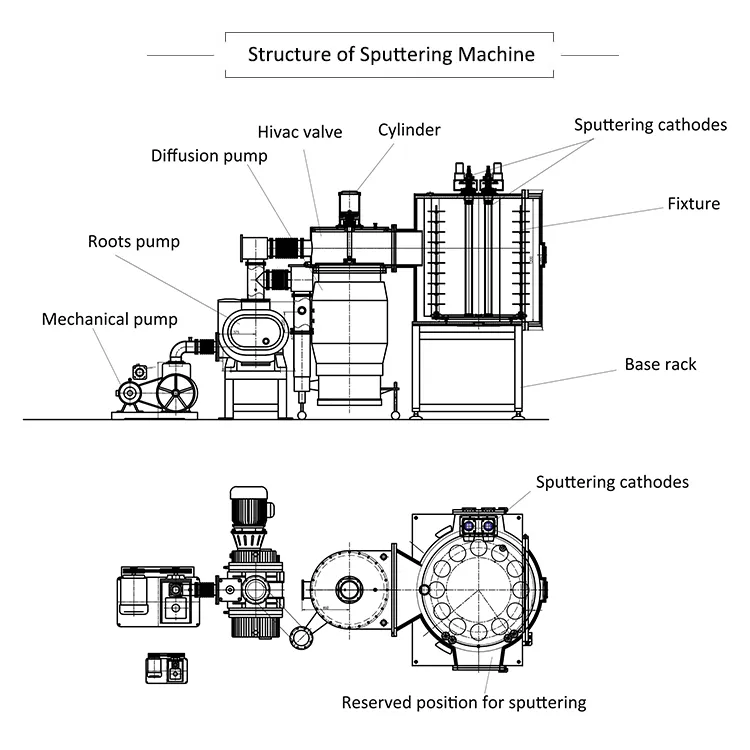

| Pumping System | Turbo molecular or Diffusion pump + Mechanical pump | |||
| Ultimate Vacuum | 5.0*10-4 Pa | |||
| Pumping Time | ATM to 5.0*10-2Pa < 8 minutes | |||
| Working Mode | Automatic or Manual mode (PLC touch screen) | |||
| Total Power | 40-100kW | 70-1000kW | ||
* All specifications can be customized according to specific requests.

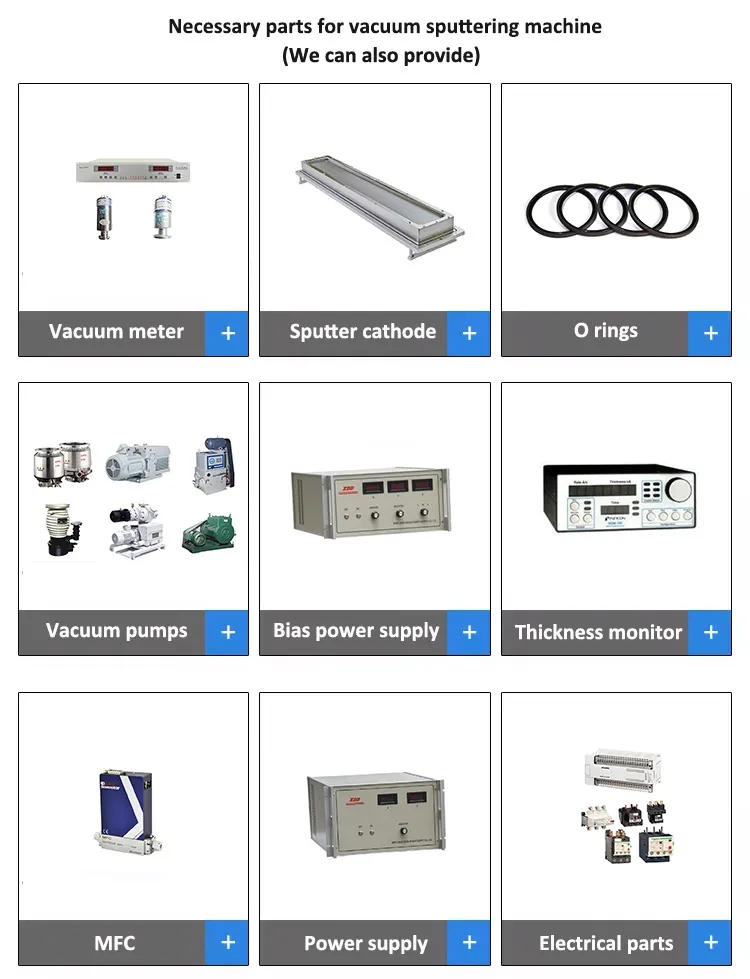

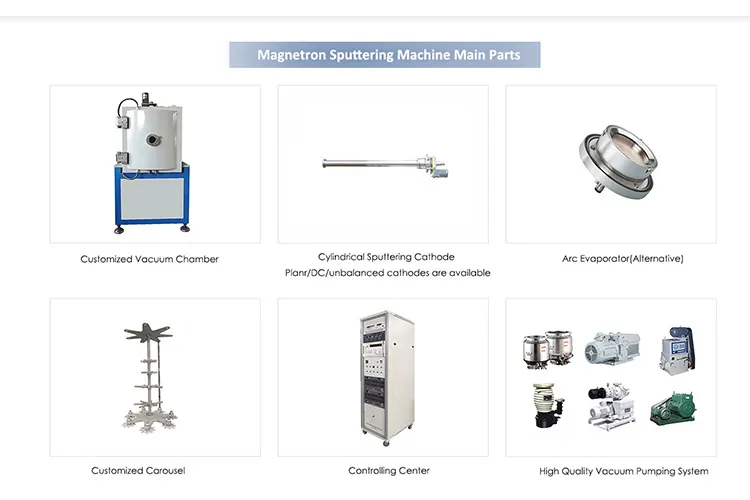

Necessary parts available for daily production:
