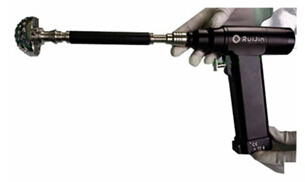

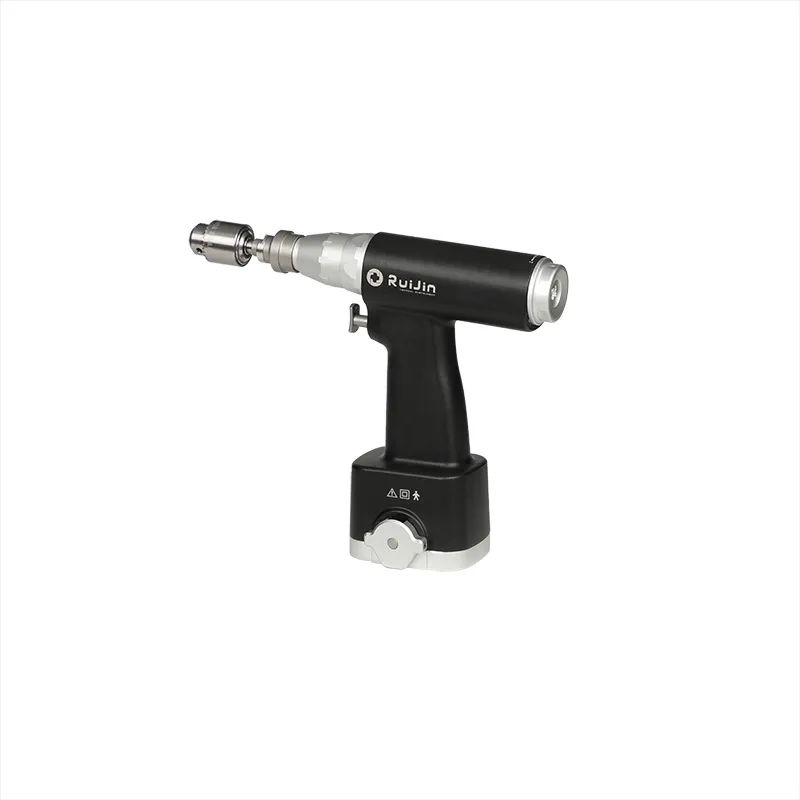

Medical drill tools equipment orthopedic low-speed endoprosthesis total Arthroplasty replacement
This medical instrument is broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. It is designed for K wires or used in intermediary interlocking nail surgery or arthroscopic surgery. The whole unit is autoclavable, featuring an imported motor to ensure low noise, high speed, high proper alignment, and long service life.
| Working Voltage | 14.4V |
| Output Power | 130W |
| Unit rise in Temperature | ≤ 25ºC |
| Input Voltage | AC 220V, 50Hz |
| Charging time | 3 hours |
| Speed | 300r/min |
| Non-loaded noise | 63dB(A) |
| Torque | 33000gcm |

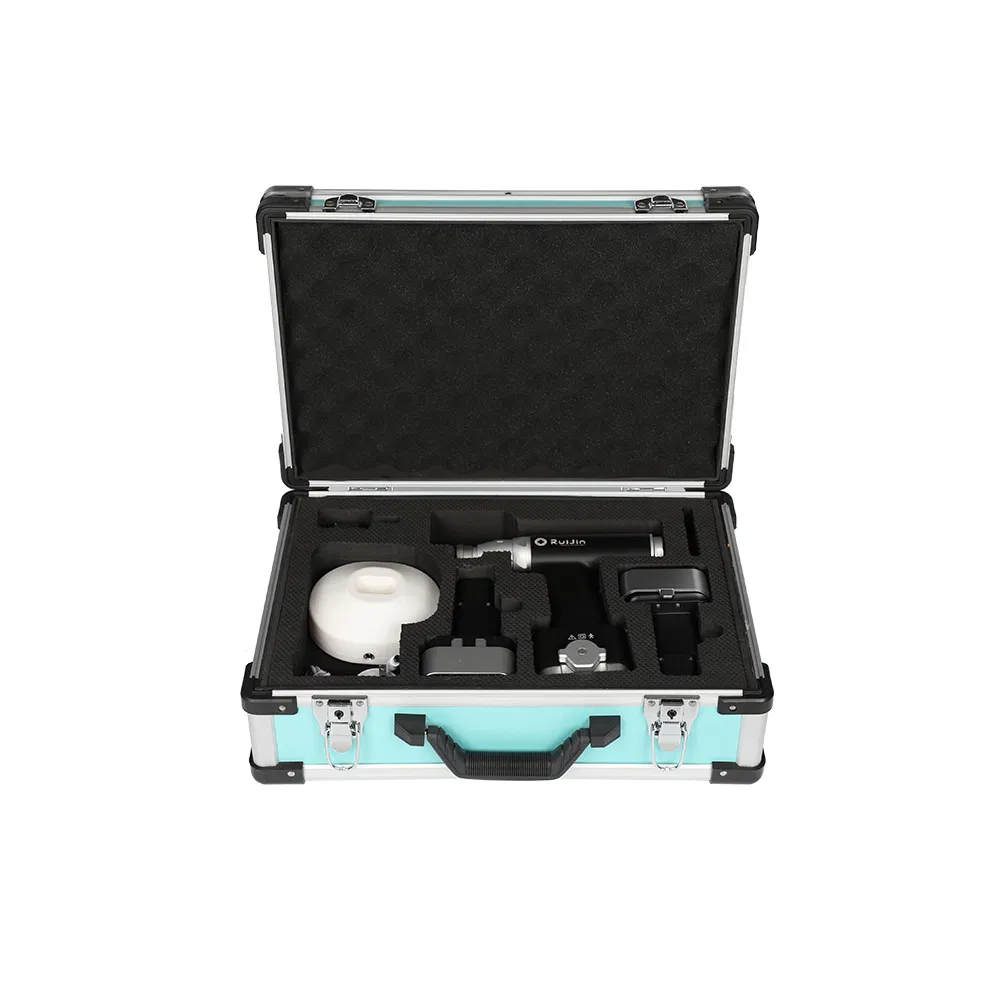

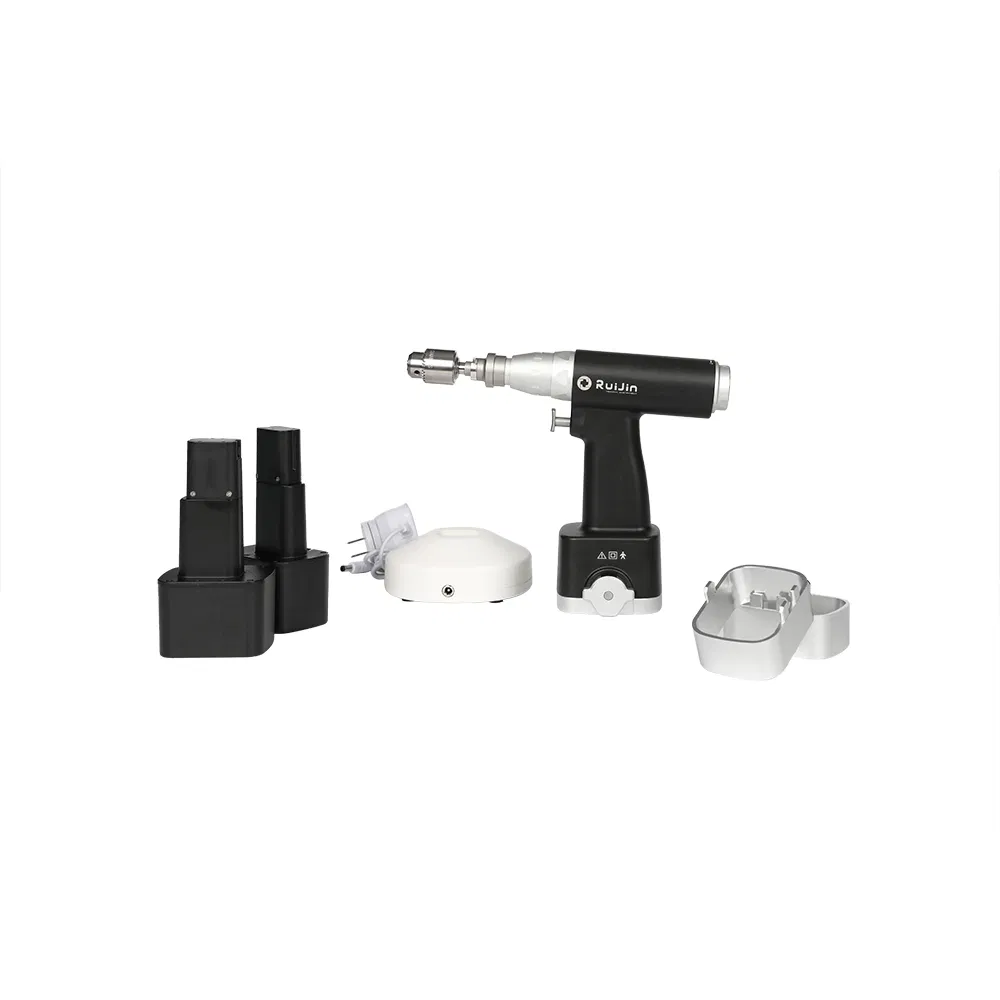

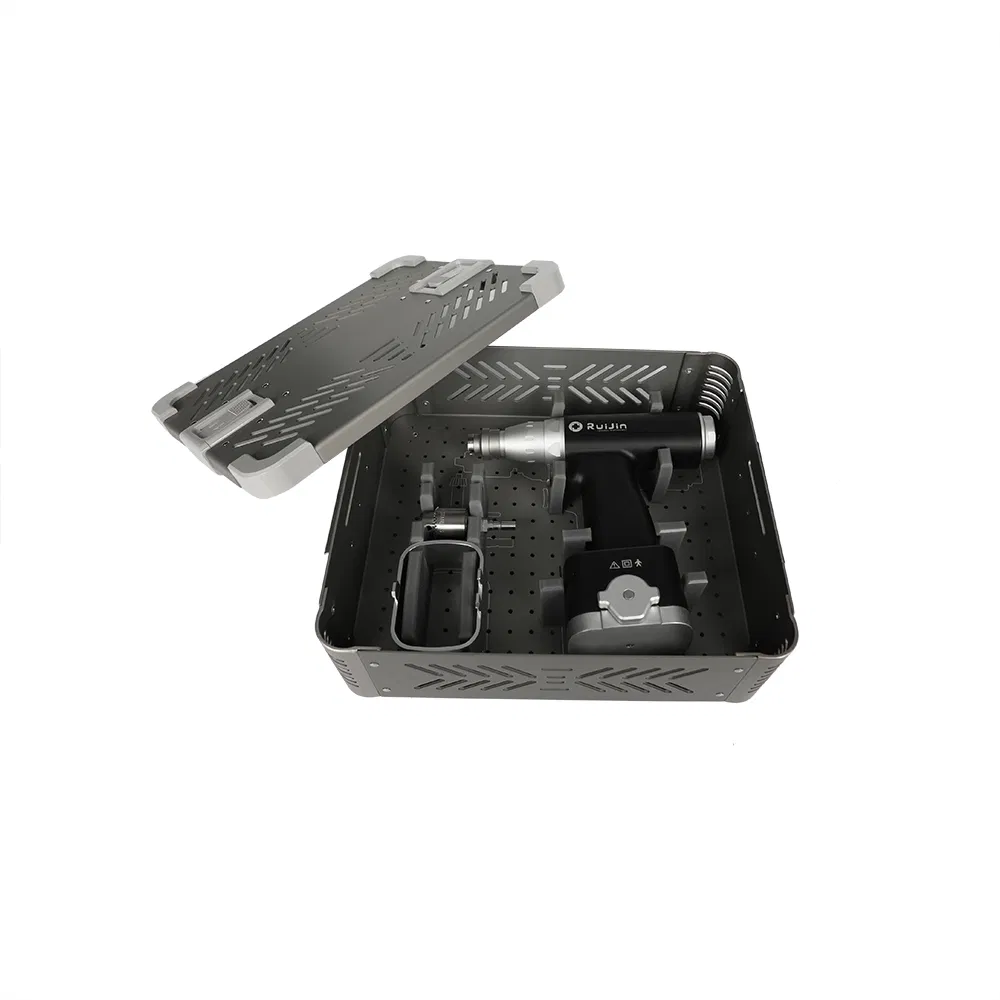

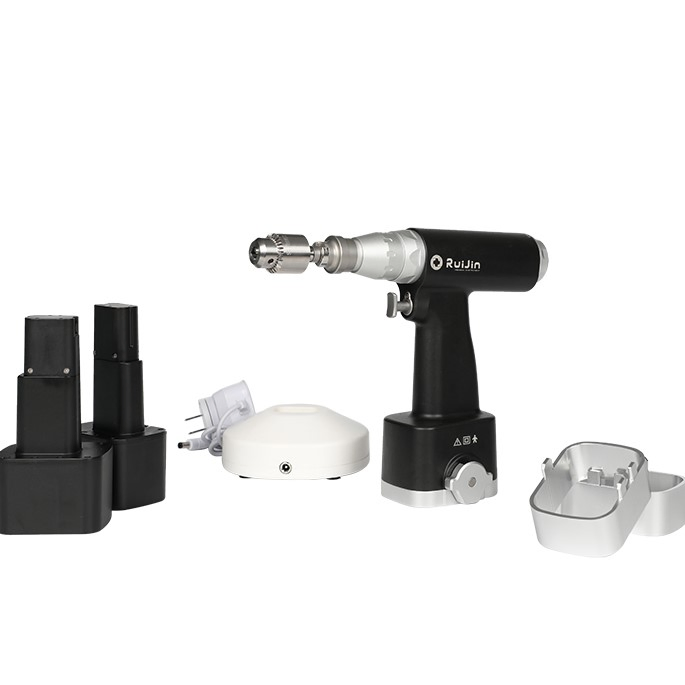

Standard Configuration: One handpiece, one charger, two batteries, one sterilizing channel, one drill chuck, and one aluminum alloy box.

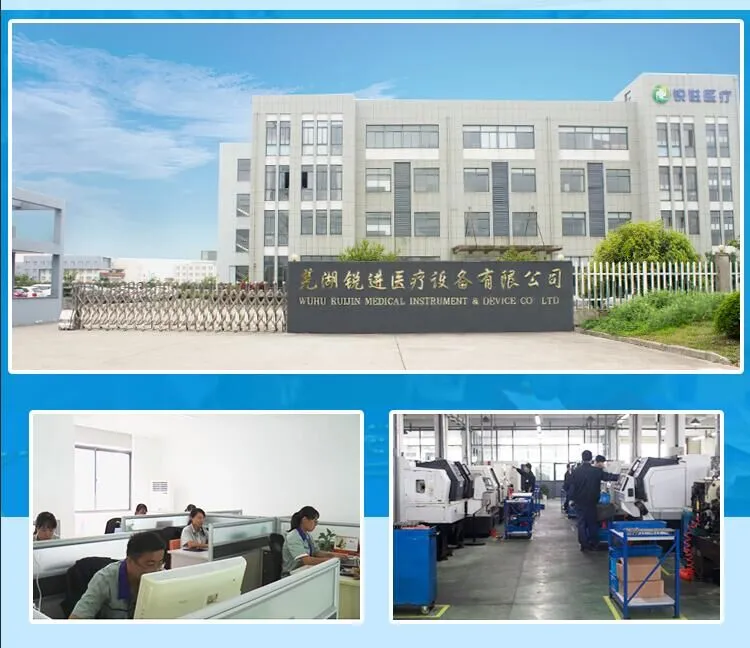

As a medical device manufacturer integrated with R&D, production and sales, we focus on medical drill series and micro medical electric drill series. Products include bone drills, multi-functional cannulated drills, and various surgical saws used in Trauma, Thoracic, and Joint operations.
| 1 | The device must be handled by professionals for maintenance. |
| 2 | Compatible with electricity sources 110V/60Hz - 220V/50Hz. |
| 3 | Remove the battery when not in use to prevent automatic discharge. |
| 4 | The battery cannot be disinfected; ensure the battery space remains dry. |
| 5 | Sterilization temperature must not exceed 135 degrees Celsius. |
