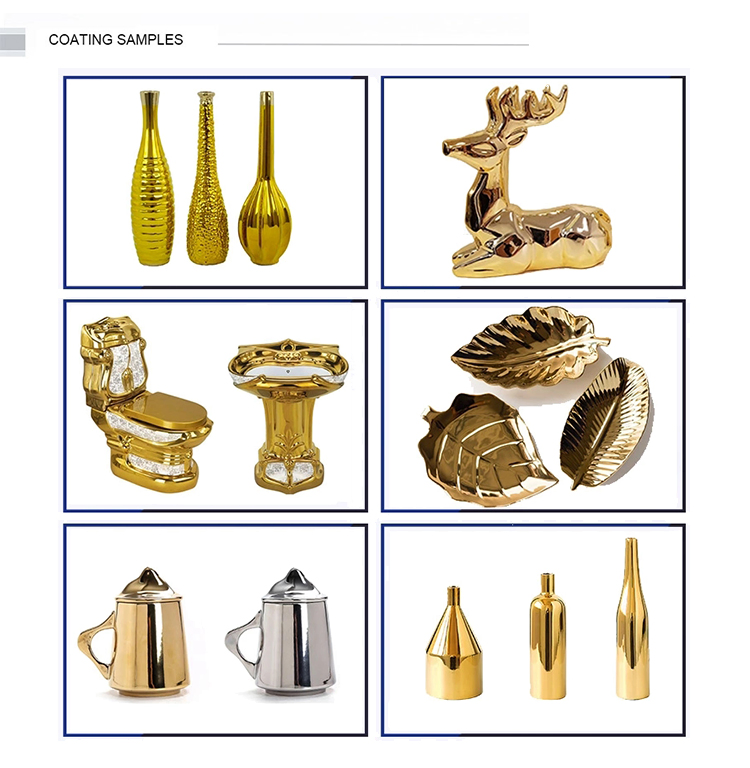

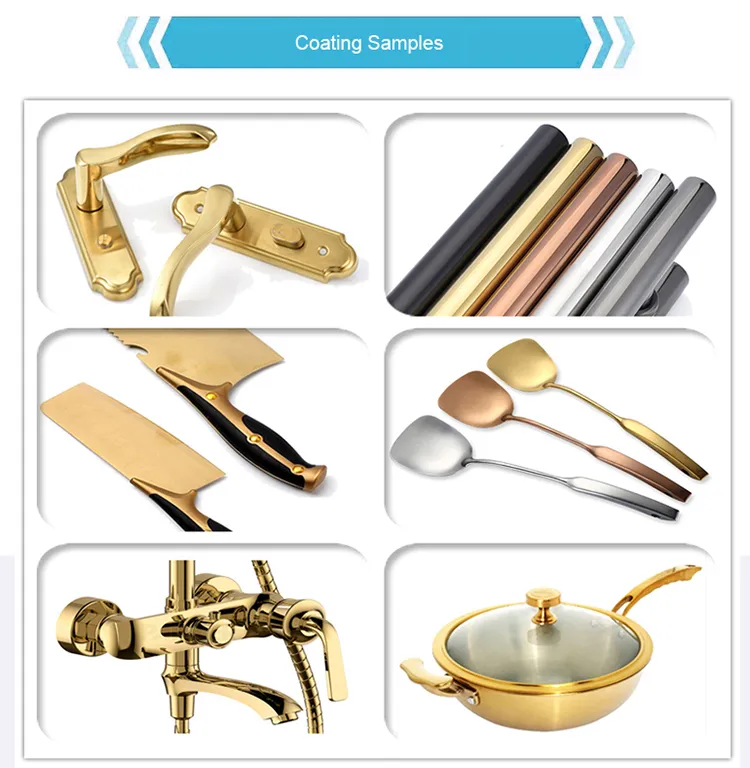

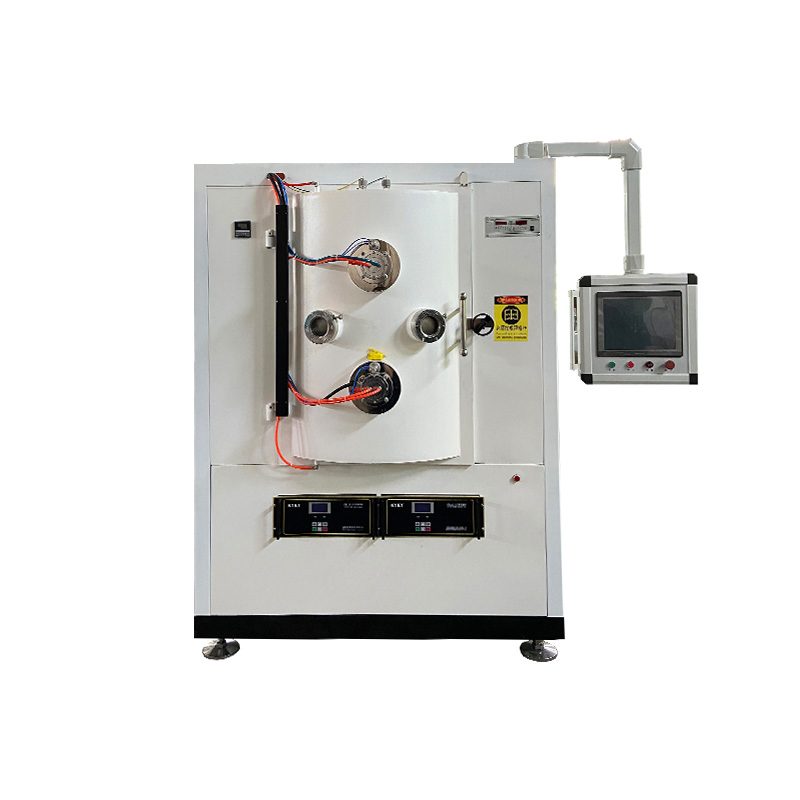

This Titanium Nitride Coating Equipment is a high-tech environmental friendly product for metal, glass and surface coating. After coating by this machine, workpieces' hardness, wear resistance, and resistance are significantly improved. It serves various industries including watch components, glass ceramics, hardware, architecture, precision molds, tools, and automotive parts.

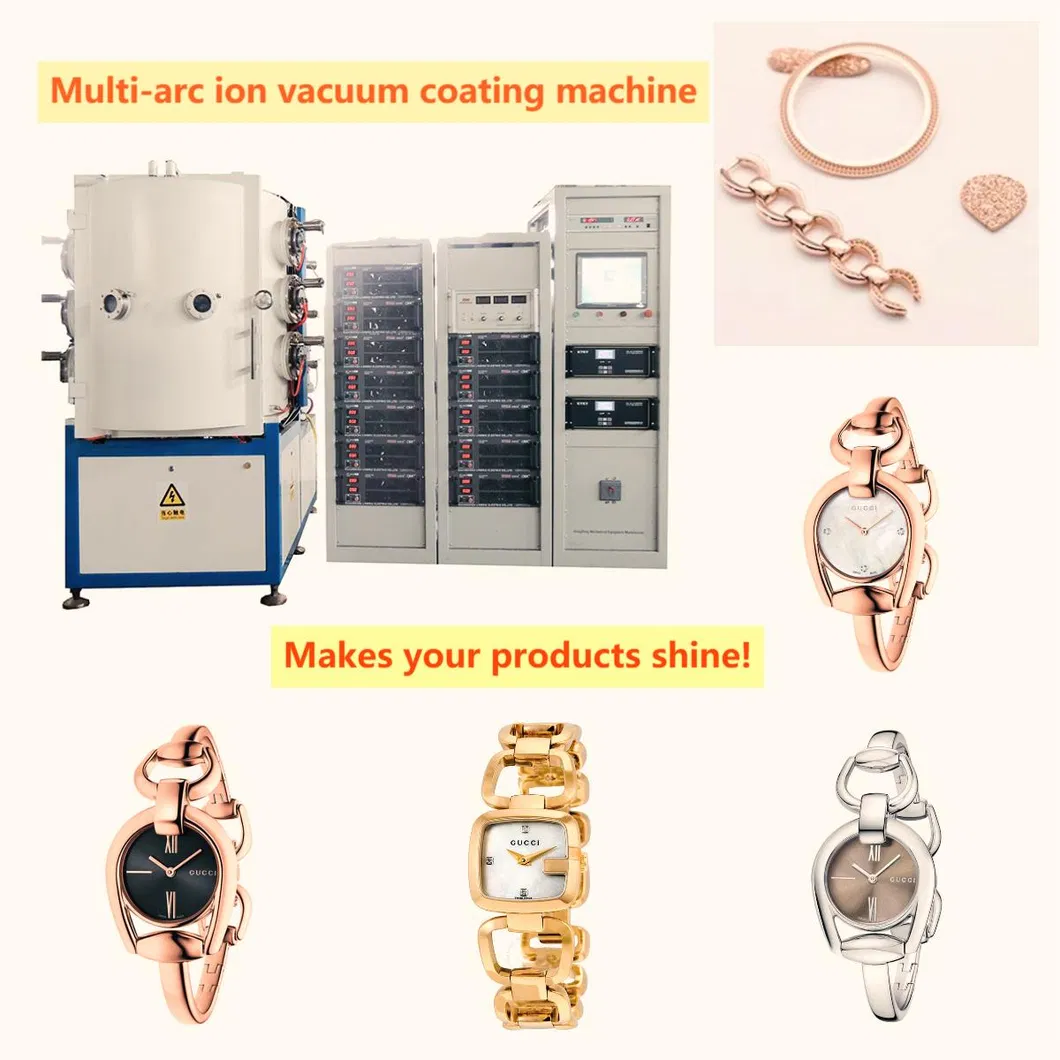

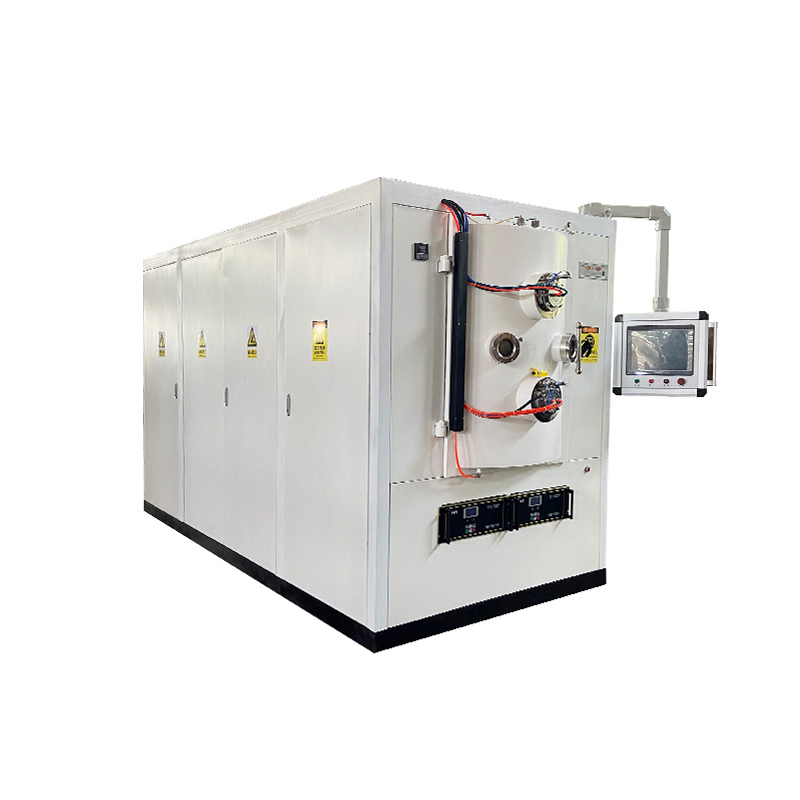

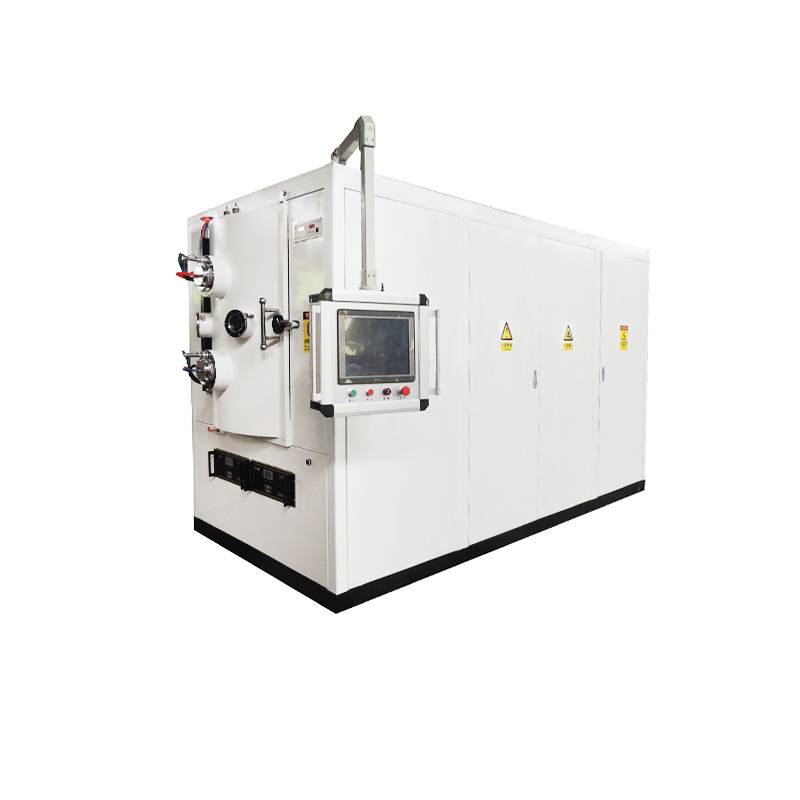

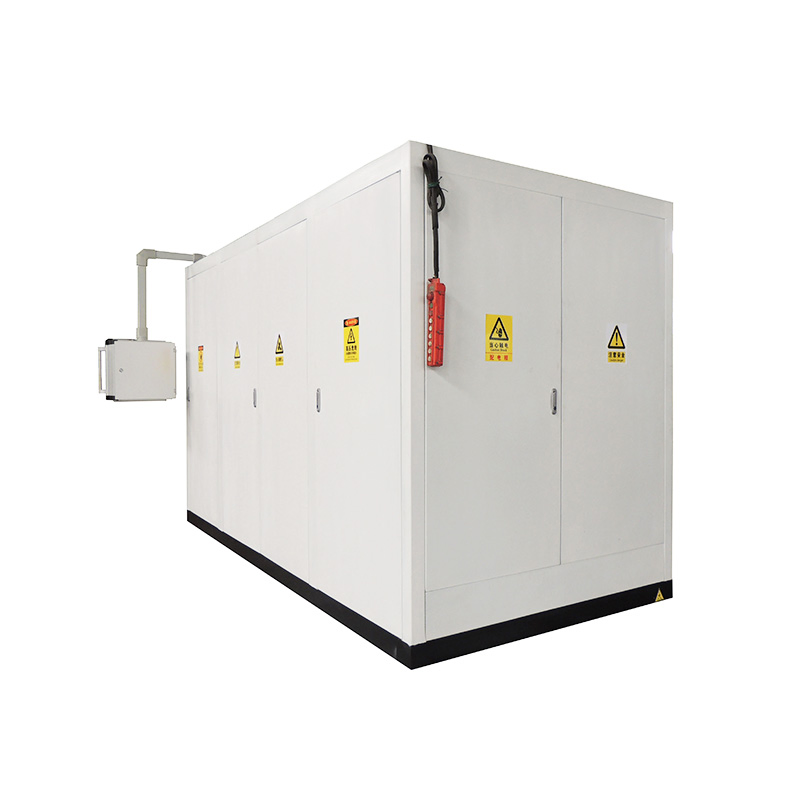

The ARC series, based on arc deposition technology, is the most suitable coating system for producing PVD hard coatings on metal tools, molds, and dies.
| Model | ARC series |
|---|---|
| Vacuum Chamber | SUS304, φ600mm-1200×600-1200mm (H) |
| Substrate Dome Size | Customized per needs |
| Rotation Speed | 10 rpm to 50 rpm (Variable) |
| Arc Source | From 2 to 16 sets |
| Vacuum System | Roughing Pump + Diffusion/Turbo Pump + Mechanical Pumps |
| Ultimate Pressure | 5.0×10-4 Pa or lower |
| Pump Down Rate | 25 minutes (to 5.0×10-3 Pa) |
| Substrate Heater | Max. 550°C |
| Layout Dimensions | Approx. 5000mm(W) × 6500mm(D) × 3500mm(H) |
|---|---|
| Power Requirements | 3-phase, 380V, 50/60Hz, 100-180kVA |
| Cooling Water Flow | 140 L/min or greater |
| Compressed Air | 0.5MPa or higher |
| Gross Weight | Approx. 8500kg |
