Titanium nitride gold PVD ion plating equipment, Vacuum gold plating system
PVD Ion plating equipment is an ion coating machine of efficiency, harmless and pollution-free. It features a fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, and large productive capacity.
The principle of the electric arc integrates cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of metal as well as nonmetal materials.
Extensively used in ultra-hard coating for tools and moulds, and decorative coating for car wheels, ceramics, golf equipment, watches, hotel products, sanitary ware, luminaires, optical frames, and hardware.
Professional PVD Coating Machine:

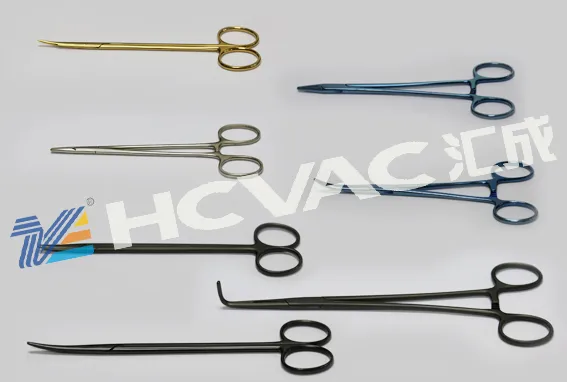

High-quality finishes achieved by our ion plating system:
| Model / Dimension | LH-800 | LH-1250 | LH-1416 | LH-1618 |
| Size | 800*1000mm | 1200*1500mm | 1400*1600mm | 1600*1800mm |
| Coating Mode | Eight multi-arc targets | Twelve multi-arc targets | Fourteen multi-arc targets | Twenty multi-arc targets |
| Power Source | Electric-arc power, Filament power, Pulsed bias power supply | |||
| Process Gas Control | Mass flowmeter + Electromagnetic ceramic valve | |||
| Vacuum Chamber | Vertical side opening door, pump system postposition, double water cooling | |||
| Vacuum System | Molecule pump/Diffusion pump + Roots pump + Mechanical pump (Up to 5.0*10 -5 Pa) | |||
| Baking Temp | Normal temperature to 350°C PID control, radiation heating | |||
| Motion Mode | Public rotation Frequency control: 0-20 RPM | |||
| Control Mode | Manual / Automatic / PC / PLC + HMI options | |||
| Customization | Equipment dimensions can be designed according to customer's special requirements. | |||
