Plain Surface Cast Iron 5.6 Grade Rail Shoulder

1 / 5

Plain Surface Cast Iron 5.6 Grade Rail Shoulder

Customization:	Available
Customized:	Customized
Certification:	ISO9001

Send Inquiry

Product Description

Basic Specifications

Model NO.

For rail UIC54, UIC60, 115RE, 50kg, 60kg

Type

Shoulder

Material

Qt500-7 (Ggg50)

Surface

Plain (Oiled)

Condition

New

Used in

Pre-Stressed Concrete Ties

Origin

China

HS Code

8608009000

Production

1000 Boxes Per Month

Product Introduction

Plain Surface Cast Iron 5.6 Grade Rail Shoulders are cast in the concrete ties for fixation of Elastic Rail Clips. Our Iron Shoulders are manufactured from pearlitic malleable iron (M. C. I. Inserts) and spheroid graphite iron (S. G. C. I. Inserts).

We offer two primary types of Iron Shoulders:

Single Stem Iron Shoulders: Mostly used in pre-stressed concrete ties.
Twin Stem Iron Shoulders: Commonly used in Bi-Block or Twin Block concrete ties.

The shoulder accessories are supplied for specific rail sections with design criteria which ensure that the correct elastic clip toe loading is achieved. Certain shoulders are supplied with milled weld area faces to assist in achieving the necessary weld integrity.

Technical Parameters

Feature	Specifications
Name	Plain Oiled / Black Treated Cast Iron Shoulder
Compatibility	Rail UIC54, UIC60, 115RE, 50kg, 60kg, BS80lbs, BS100lbs, or custom drawings
Material Grade	QT500-7 (GGG50)	QT450-10 (GGG45)	QT400-15 (GGG40)
Chemical Composition (%)	C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025	C:3.40-3.90, Mn:0.2-0.5, Si:2.70-3.00, P:≤0.07, S:≤0.03	C:3.5-3.60, Mn:≤0.5, Si:3.00-3.20, P:≤0.07, S:≤0.02
Surface Finish	Plain (Oiled)

Product Display

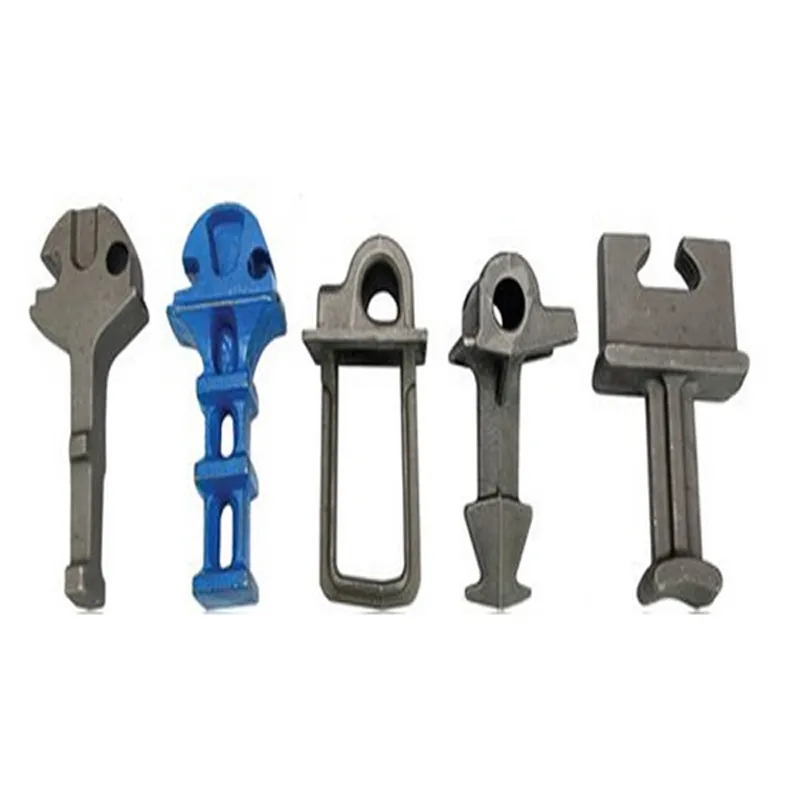

Plain Surface Cast Iron 5.6 Grade Rail Shoulder Front View

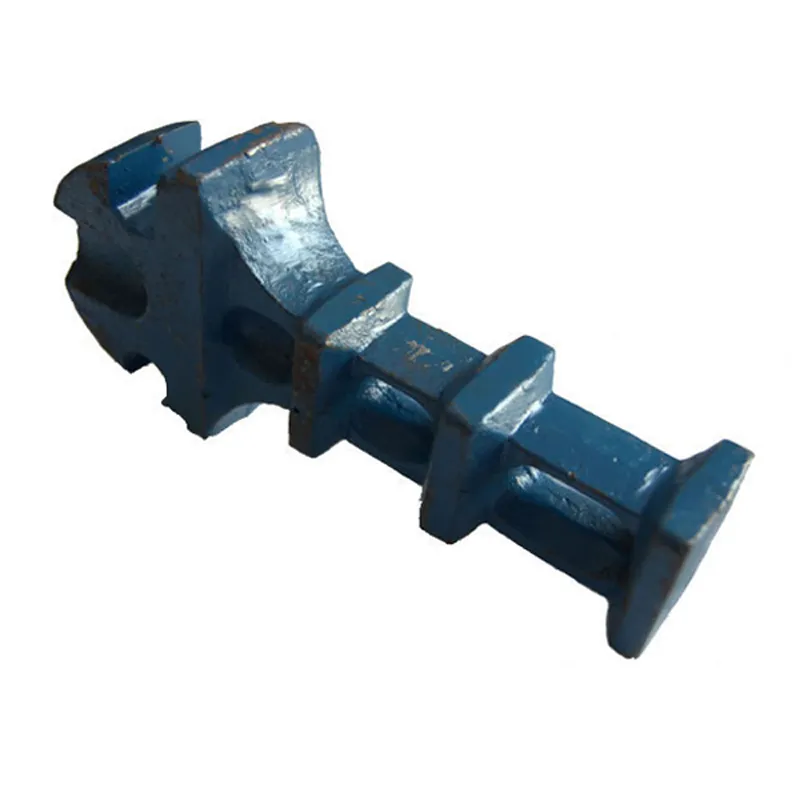

Plain Surface Cast Iron 5.6 Grade Rail Shoulder Side View

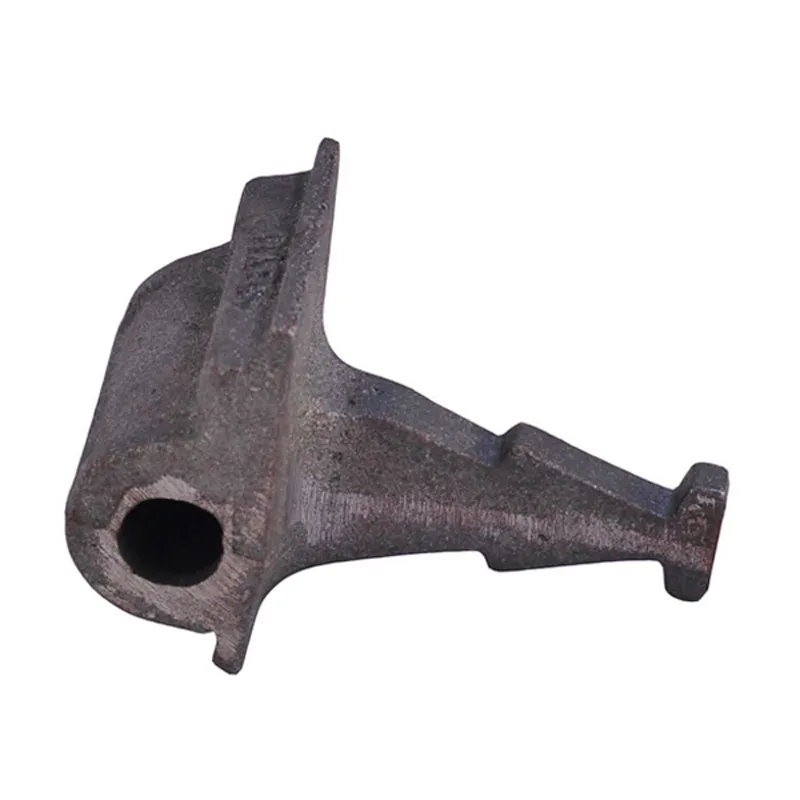

Plain Surface Cast Iron 5.6 Grade Rail Shoulder Detail View

Frequently Asked Questions

What materials are used for the rail shoulders?

The shoulders are manufactured from high-quality pearlitic malleable iron (M.C.I.) and spheroid graphite iron (S.G.C.I.), specifically grades like QT500-7, QT450-10, and QT400-15.

What are the main types of iron shoulders available?

We offer two main types: Single Stem Iron Shoulders for pre-stressed concrete ties and Twin Stem Iron Shoulders for Bi-Block or Twin Block concrete ties.

Which rail sections are compatible with these shoulders?

They are compatible with a wide range of rail sections including UIC54, UIC60, 115RE, 50kg rail, 60kg rail, BS80lbs, and BS100lbs.

What surface treatment is applied to the shoulders?

The standard surface finish is plain and oiled, but black treated options are also available depending on requirements.

What is the function of these rail shoulders?

Rail shoulders are cast directly into concrete ties to provide a secure and stable fixation point for Elastic Rail Clips, ensuring correct toe loading.

Can you provide shoulders based on custom designs?

Yes, in addition to standard models, shoulders can be produced according to specific customer drawings and technical requirements.
