XOVEC Orthopedic Implants
1 / 5
| Product Type | Specifications (Diameter x Length) | Locking & Blade Screws | Size Details |
|---|---|---|---|
| PFNA Intramedullary Nail | Φ9 * 180 / 200 / 220 / 240 | 4.7mm Locking Screw | Φ4.7 * 26 to Φ4.7 * 84 |
| Φ10 * 180 / 200 / 220 / 240 | Blade Screw | Φ10.4 * 70 to Φ10.4 * 120 | |
| Φ11 * 320 to 440 (R/L) | PFNA Blade | Compaction Design | |
| Φ12 * 180 / 200 / 220 / 240 | Additional Sizes | Customizable on request |

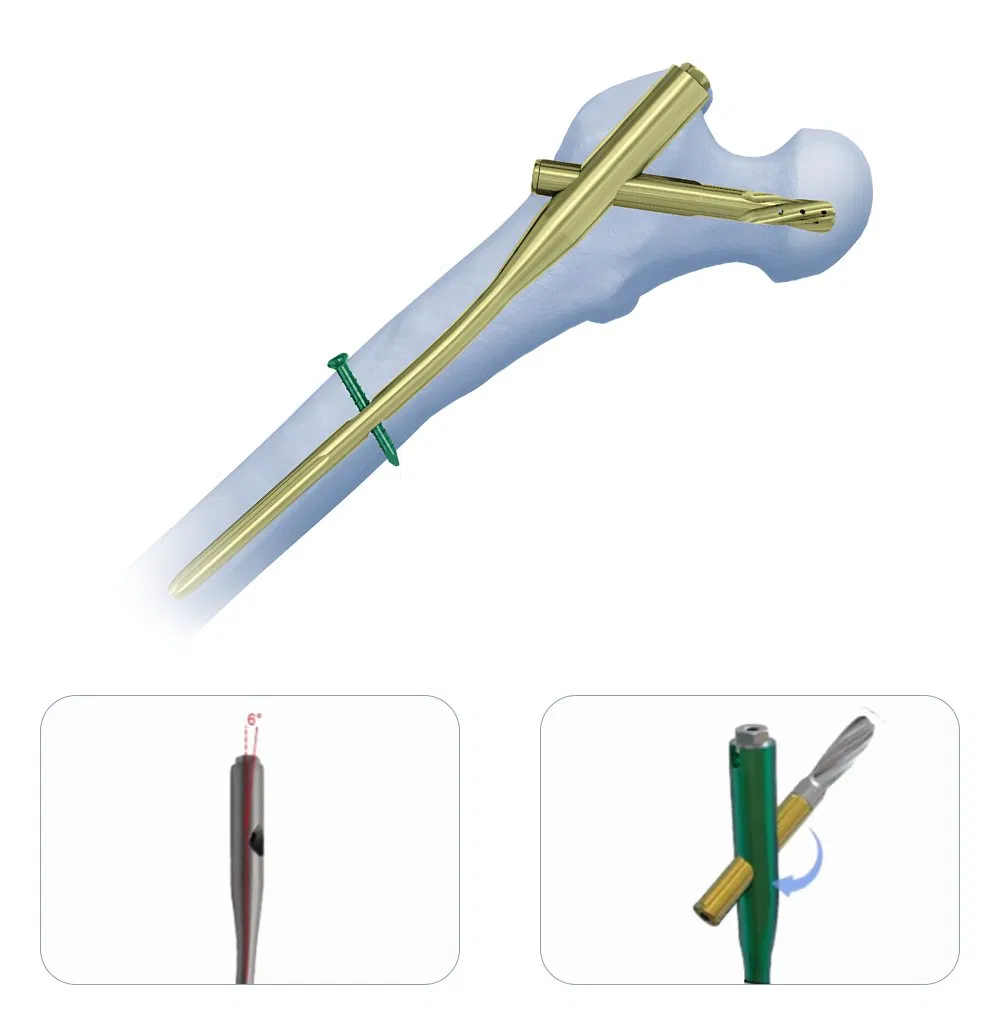

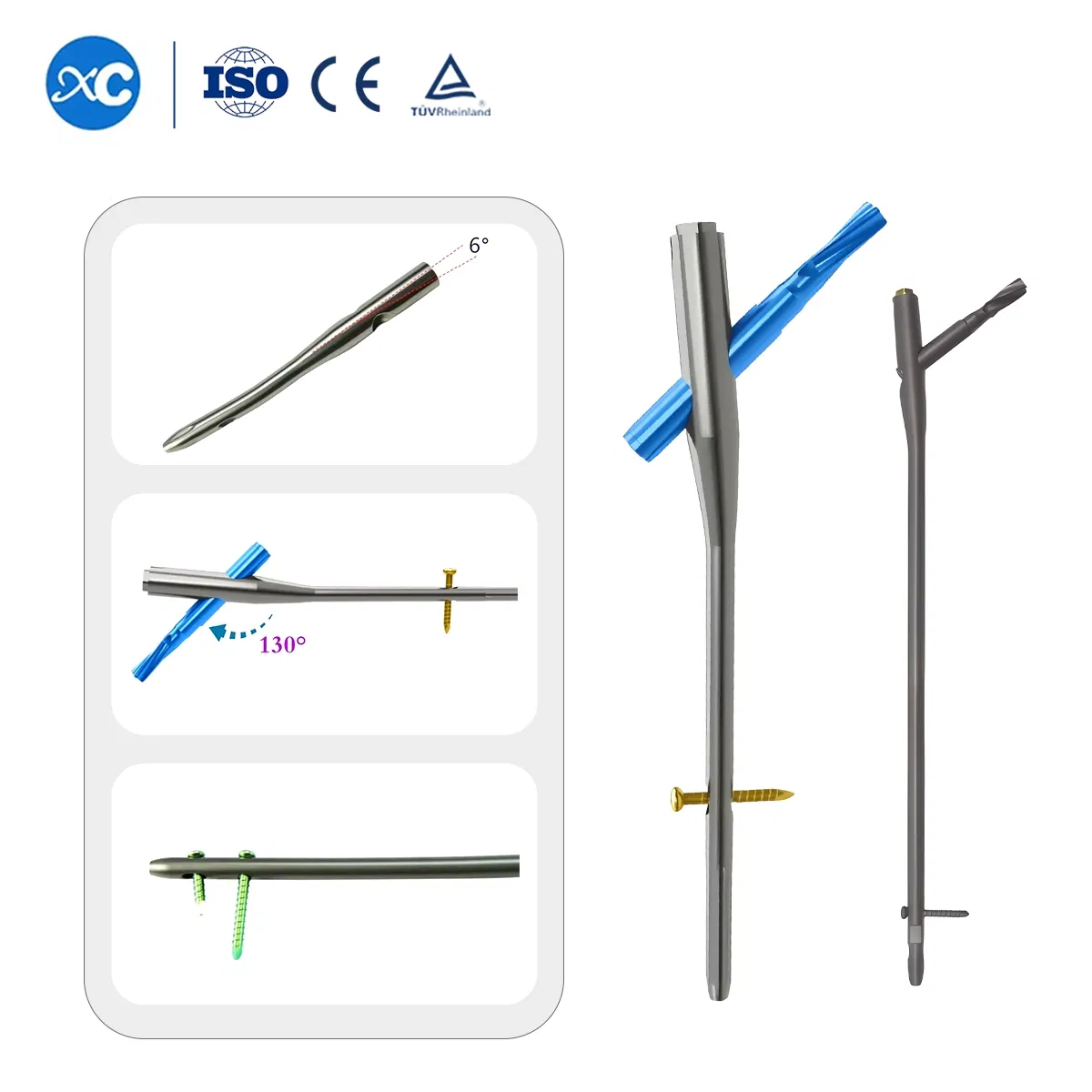

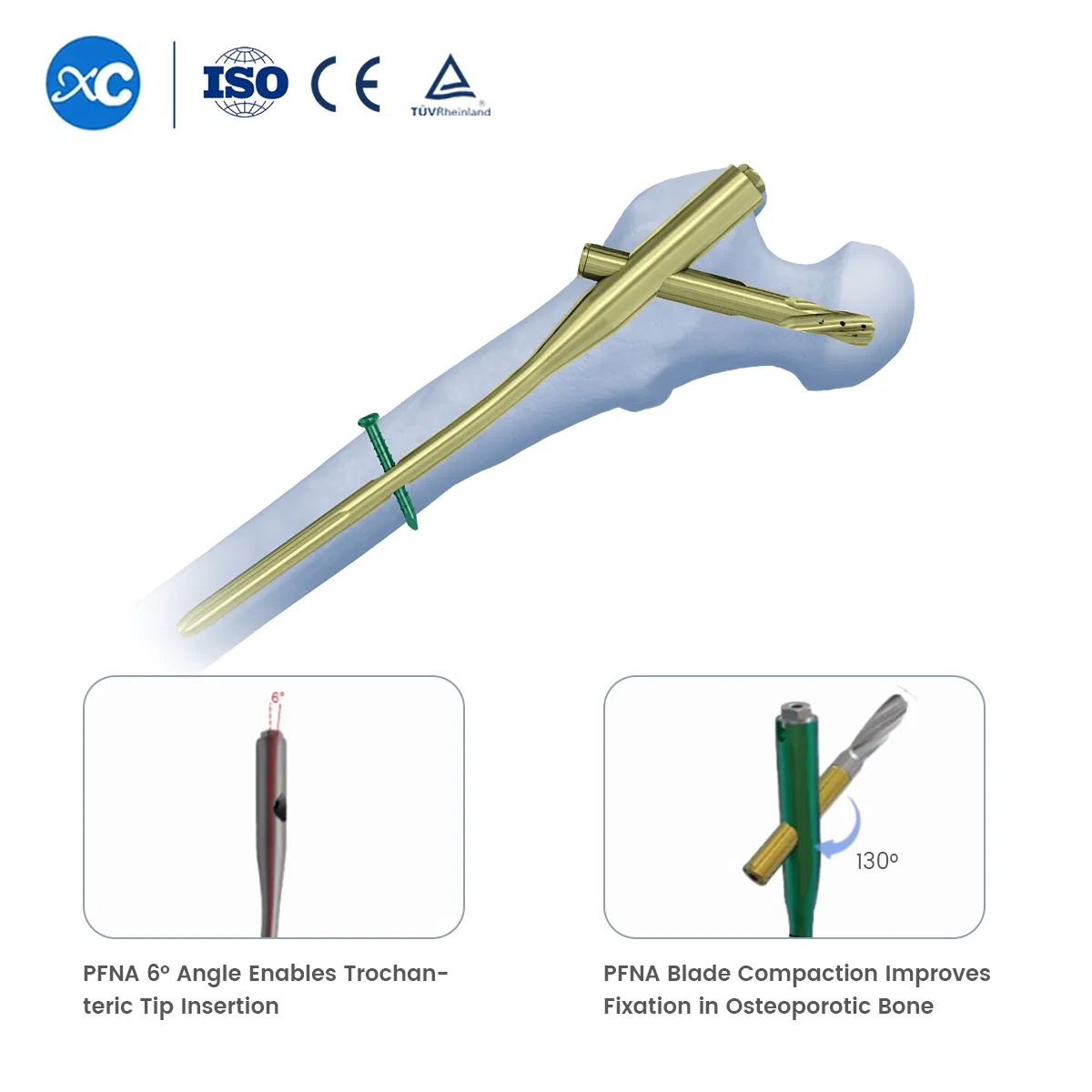

The PFNA nail has a Medial-Lateral Angle of 6°, which allows precise insertion at the tip of the greater trochanter.

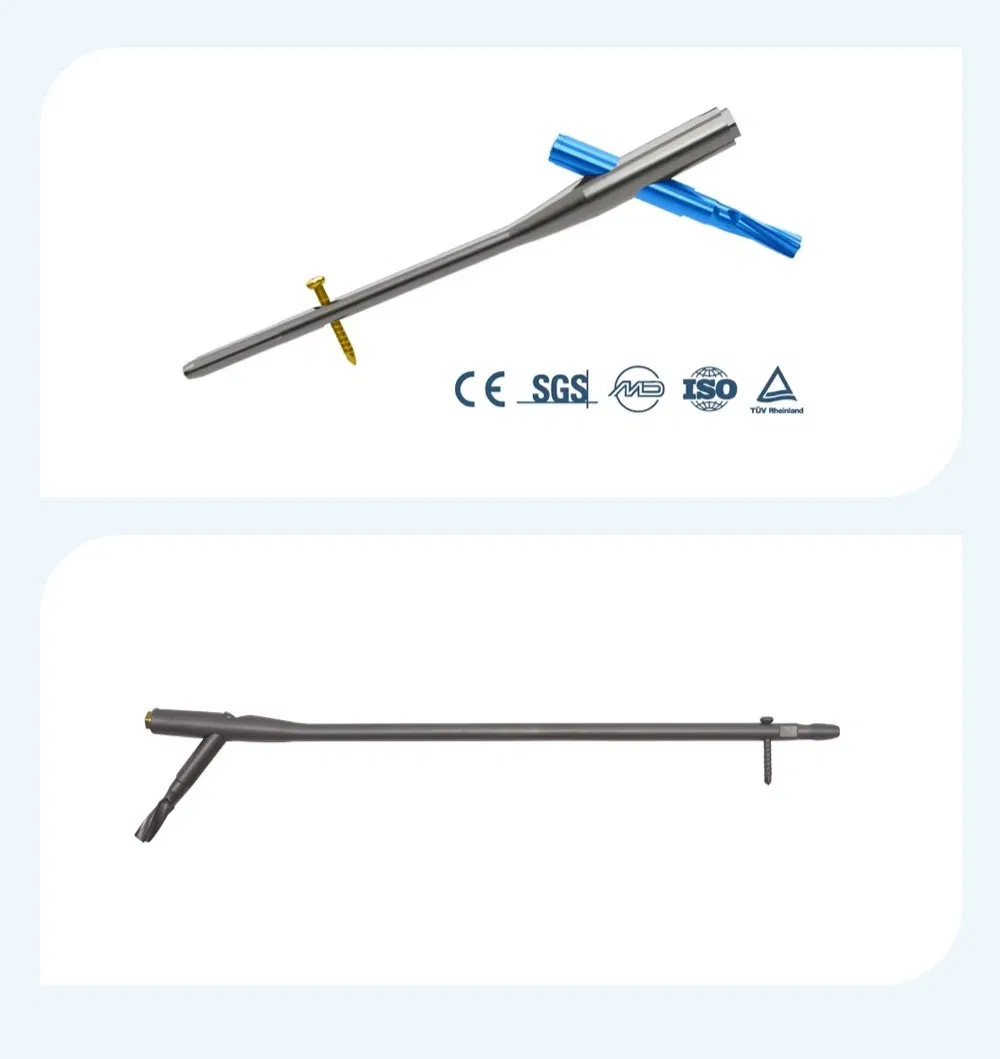

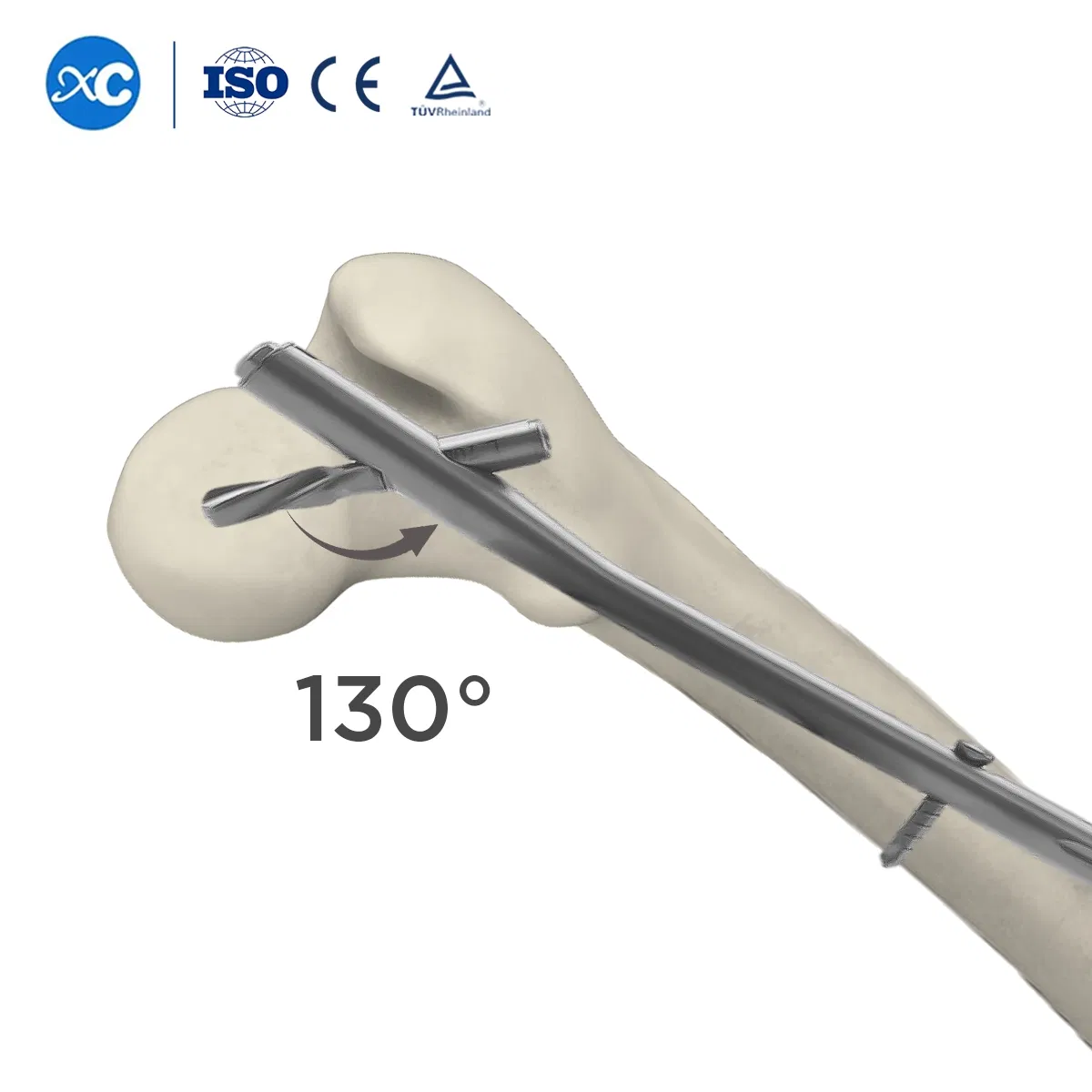

The PFNA blade screw offers higher cut-out resistance than standard screws. Its 130° angle with the nail provides superior ergonomics and anchoring in cancellous bone.
Inserting the PFNA blade compacts the cancellous bone, providing additional anchoring which is especially critical in osteoporotic bone.
Features both static and dynamic locking via the aiming arm. Long nails also support secondary dynamization for optimal healing.

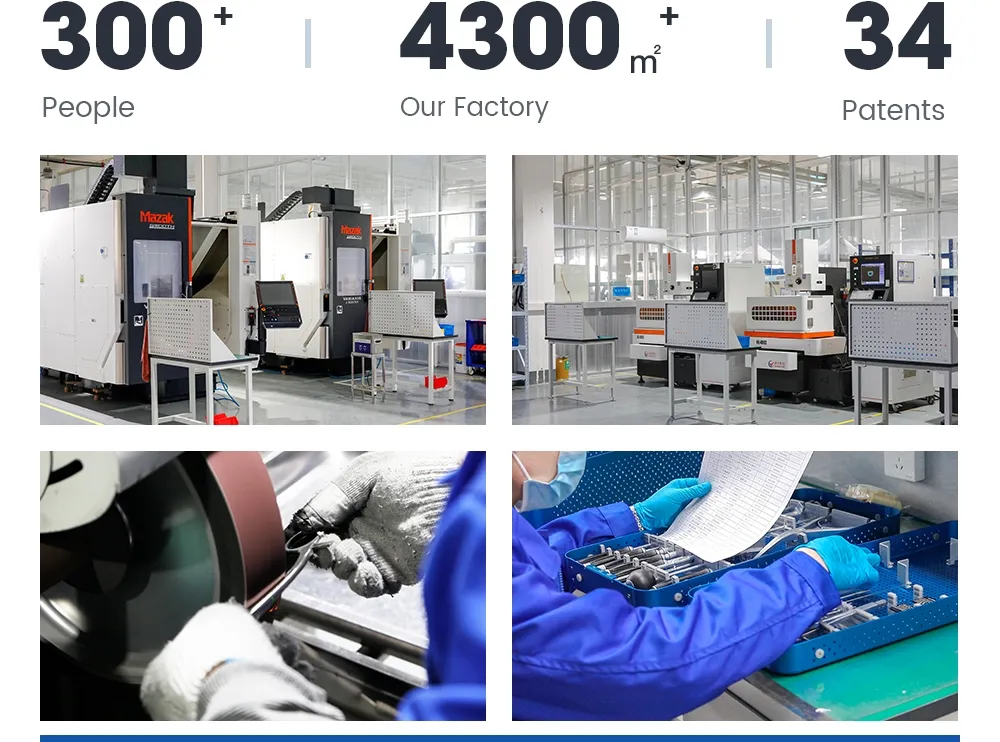

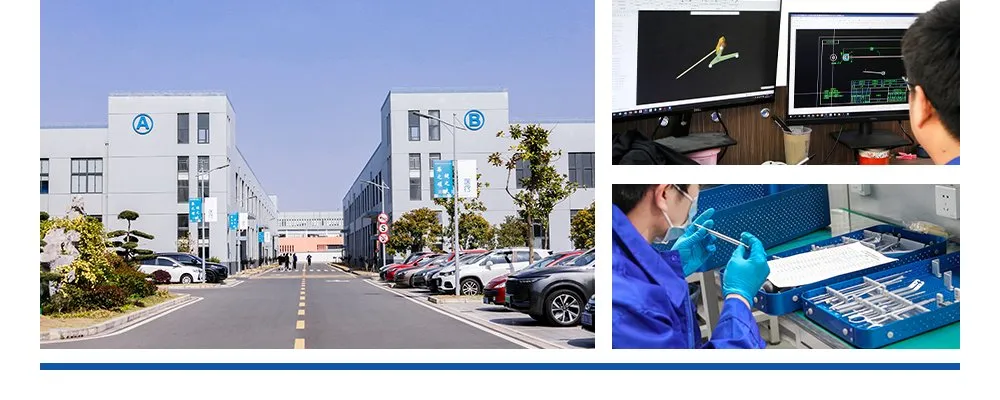

With 15 years of dedicated research and development, we provide a full range of orthopedic implants and instruments. Our production includes spinal systems, interlocking nail systems, locking plate systems, and medical power tools. We continue to innovate in new areas such as veterinary orthopedic products to meet global surgical needs.
